Solar Panel Installation in Vancouver: What Every Homeowner Needs to Know Before Making the Switch
"Solar photovoltaic capacity has grown at an average annual rate of 33% over the past decade and now accounts for a rapidly increasing share of global electricity generation."
— International Energy Agency (IEA), Solar PV AnalysisCommon Questions About Solar Panel Installation
-
Can my roof handle solar panels?
This is the right place to start. Two things matter here: structural condition and solar access. Your roof needs to be in sound structural shape — solar installations typically carry 25-year warranties, and if your roof needs significant work within that window, it is far less disruptive to do it before the panels go up than after. Beyond structure, your roof needs adequate direct sunlight, particularly between 9 AM and 4 PM. If significant portions of the roof are shaded for most of the day, the panels will underperform relative to their cost.
South-facing roofs at roughly 30 degrees of tilt are ideal. South-east and south-west orientations also work well. Before purchasing anything, get a proper site assessment — any reputable installer will include this as a starting point. Also check your homeowner association rules if applicable; some have restrictions on visible roof modifications.
-
Which type of solar panel — thermal or photovoltaic?
Most residential installations in Vancouver use photovoltaic (PV) panels, which convert sunlight directly into electricity. Solar thermal systems use sunlight to heat water or air — they are more efficient at that specific task but less versatile. If your household has very high heating costs or uses large amounts of hot water, a solar thermal component can be worth evaluating alongside a PV system. For most Vancouver homeowners, PV is the primary installation.
-
How do I connect solar panels to the BC Hydro grid?
Grid connection involves more than plugging in the panels. You need to connect the system to your home's electrical panel through a properly installed inverter, apply to BC Hydro for a grid interconnection agreement, and have the electrical work inspected and approved through Technical Safety BC. BC Hydro's net metering program allows you to send surplus electricity back to the grid and receive credit on your bill — but the process for setting this up has specific requirements. A licensed electrician handles the electrical scope of this connection. Panel upgrade service if required →
-
Should I buy or lease the solar panels?
Purchasing outright gives you the best long-term return. You own the system, claim the full energy savings, access available government rebates, and add value to your property. The upfront cost is higher, but the payback period in BC — given electricity rates and available incentives — is meaningful. Leasing reduces the upfront cost but means a third party owns the equipment. This can complicate property sales, means you do not fully benefit from incentive programs, and comes with terms that can be restrictive. For most homeowners planning to stay in their property, purchasing — including through financing — is the more advantageous option. (Leasing solar panels is a bit like leasing a lawnmower permanently. Technically works. Financially, not the optimal play.)
Key Things to Know About Solar Panels
What Solar Panels Are Made Of
Solar panels contain photovoltaic cells made primarily from silicon semiconductors. When sunlight contacts the cells, electrons separate from atoms and circulate through the cell, generating direct current (DC) electricity. An inverter then converts this to AC current for use in your home. Residential cells currently achieve around 20% conversion efficiency. Commercial systems reach up to 40%, and efficiency continues to improve as the technology matures.
Solar Energy Is Free and Renewable
Once the panels are paid for, the electricity they generate costs nothing. Solar energy produces no direct carbon emissions and draws on a resource that will be reliably available for several billion more years. Natural Resources Canada's renewable energy data shows solar contributing increasingly to Canadian energy generation annually.
Installation Costs and Long-Term Value
Solar panel costs have dropped substantially over the past decade and continue to fall. Beyond the energy savings, solar installations increase property value — studies consistently show homes with owned solar systems sell at a premium. BC Hydro's net metering program and available provincial incentives reduce the net cost further. The upfront investment is real; the long-term return is also real.
Cloudy Days and Winter Performance
Solar panels generate electricity in diffuse and indirect light — cloudy days reduce output but do not eliminate it. Vancouver's rainy season affects generation, but annual solar irradiance in the Lower Mainland is sufficient to make residential solar viable. Battery storage systems accumulate surplus power from sunnier periods. Panels produce no electricity at night, which battery storage addresses for households that want overnight self-sufficiency.
Roof Orientation and Shading
South-facing at 30 degrees is optimal. East and west-facing roofs can work with appropriate panel selection and layout. The non-negotiable requirement is minimal shading between 9 AM and 4 PM — shade dramatically reduces output from affected panels and, on some older system configurations, can affect the performance of adjacent unshaded panels too. Keep trees pruned away from panel areas as part of routine property maintenance.
Low Maintenance Once Installed
Solar panels have no moving parts and require minimal maintenance. Tilted roof installations are largely self-cleaning — rain removes most surface debris. An occasional check for visible damage, and a yearly general inspection by your installer, is all most systems need. The 25-year warranty most quality panels carry reflects the manufacturers' confidence in this durability claim.
"Canada has significant solar energy potential across much of the country. While the solar resource is lower in Canada than in some parts of the world, it is still very viable and compares favourably with countries that have well-established solar markets."
— Natural Resources Canada, Solar Photovoltaic EnergyMonocrystalline vs. Polycrystalline — Which Panel Type to Choose
The two main residential panel types have different performance characteristics and price points. Here is a clear comparison:
| Feature | Monocrystalline | Polycrystalline |
|---|---|---|
| Silicon Type | Uniform crystalline silicon | Moulded and purified silicon fragments |
| Efficiency | Higher — better performance per sq ft | Lower — needs more space for same output |
| Performance in High Sun | Excellent | Good |
| Heat Tolerance | Better | Lower — performance drops in high heat |
| Service Life | Longer — very durable | Shorter — less durable over time |
| Cost | Higher upfront | Lower upfront |
| Best For | Limited roof space, high-sun climates, long-term investment | Larger roofs with room for more panels, tighter initial budget |
Vancouver's variable cloud cover and limited roof space on typical residential properties make monocrystalline panels the stronger choice for most homeowners — higher efficiency per square foot means you get more output from a smaller installation. The higher upfront cost is usually offset by the better long-term performance within the panel's 25-year warranty window. A qualified installer can model the actual output difference for your specific roof before you decide.

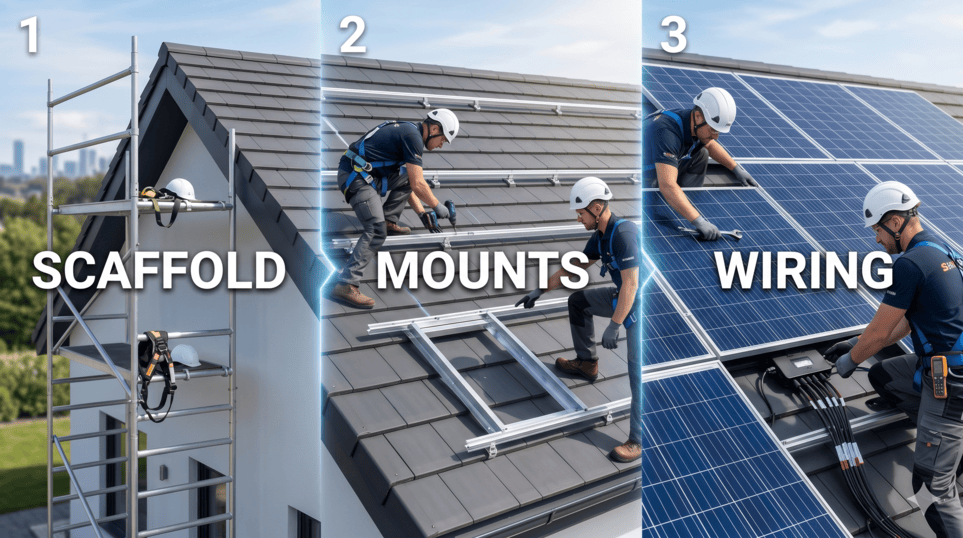

The Solar Panel Installation Process
A residential solar installation follows a clear sequence. Understanding the steps helps you ask the right questions when getting quotes and reduces the chance of unexpected surprises.
-
1
Site assessment and design
Before anything is ordered or installed, a qualified installer assesses your roof's structural condition, orientation, shading profile, and available area. The output of this assessment informs the system size, panel layout, and inverter specification. This step also identifies whether a panel upgrade is required to accommodate the solar connection. -
2
Scaffolding and roof access
Scaffolding is erected to provide safe working access to the roof. This is a safety requirement, not an optional step — roof work requires secure access for the installation team and protection for the property below. -
3
Mounting system installation
The mounting rails or frames that support the panels are fixed to the roof structure. These are typically attached to roof rafters for structural integrity. The mounting angle — typically between 18 and 36 degrees — is set to optimize solar exposure for your specific roof and latitude. -
4
Panel installation
Panels are mounted to the rails and secured with bolts and clamps. Each panel connection point is carefully torqued — loose connections create resistance, which generates heat and reduces output over time. This step requires working on a live roof surface with care for both the panels and the roofing material below. -
5
Electrical wiring and inverter connection
The panels are wired together and connected to the inverter — the device that converts the DC power generated by the panels into AC power your home can use. This is where a Technical Safety BC licensed electrician must be involved. The inverter connects to your home's electrical panel, which may require upgrading to accommodate the solar input. Our panel upgrade service → -
6
Grid interconnection and BC Hydro application
If you are connecting to the BC Hydro net metering program, your installer submits the interconnection application to BC Hydro. Once approved, surplus power you generate feeds back to the grid and appears as credit on your bill. The electrical work is inspected and approved by Technical Safety BC before the system is commissioned. -
7
System commissioning and monitoring setup
Once approved, the system is switched on, tested, and any monitoring software is configured. Most modern solar installations include an app or web portal where you can see real-time and historical generation data, which is useful for verifying the system is performing as expected.
Why You Need a Licensed Electrician for Solar Work in BC
Solar panel installation in British Columbia is not purely a roofing or panel-mounting job. The electrical scope — connecting the solar array to your home's panel, installing the inverter, and establishing the grid interconnection — is regulated electrical work that must be performed by a Technical Safety BC licensed electrician.
The most common solar-related electrical issue we are called to assess is a panel that was not upgraded before the solar connection was made. A 100A panel feeding a solar system and normal household loads simultaneously is a circuit overload situation — often the existing panel simply does not have the capacity. Getting the electrical assessment done before the panels go up prevents significant disruption. A panel upgrade while the electrician is already on site for the solar connection is straightforward. A panel upgrade six months after the solar installation, when something trips repeatedly, is considerably more complicated. Call us: (604) 239-3084
Kato Electrical provides the licensed electrical work required for solar installations across Vancouver and the Lower Mainland — including panel capacity assessments, panel upgrades, inverter connections, and Technical Safety BC permit management. We work alongside solar installers or independently on the electrical scope, depending on what your project requires.
